HONDYS WIRELESS ASTERA titan od AX1 LED TUBE HS-HDAX1

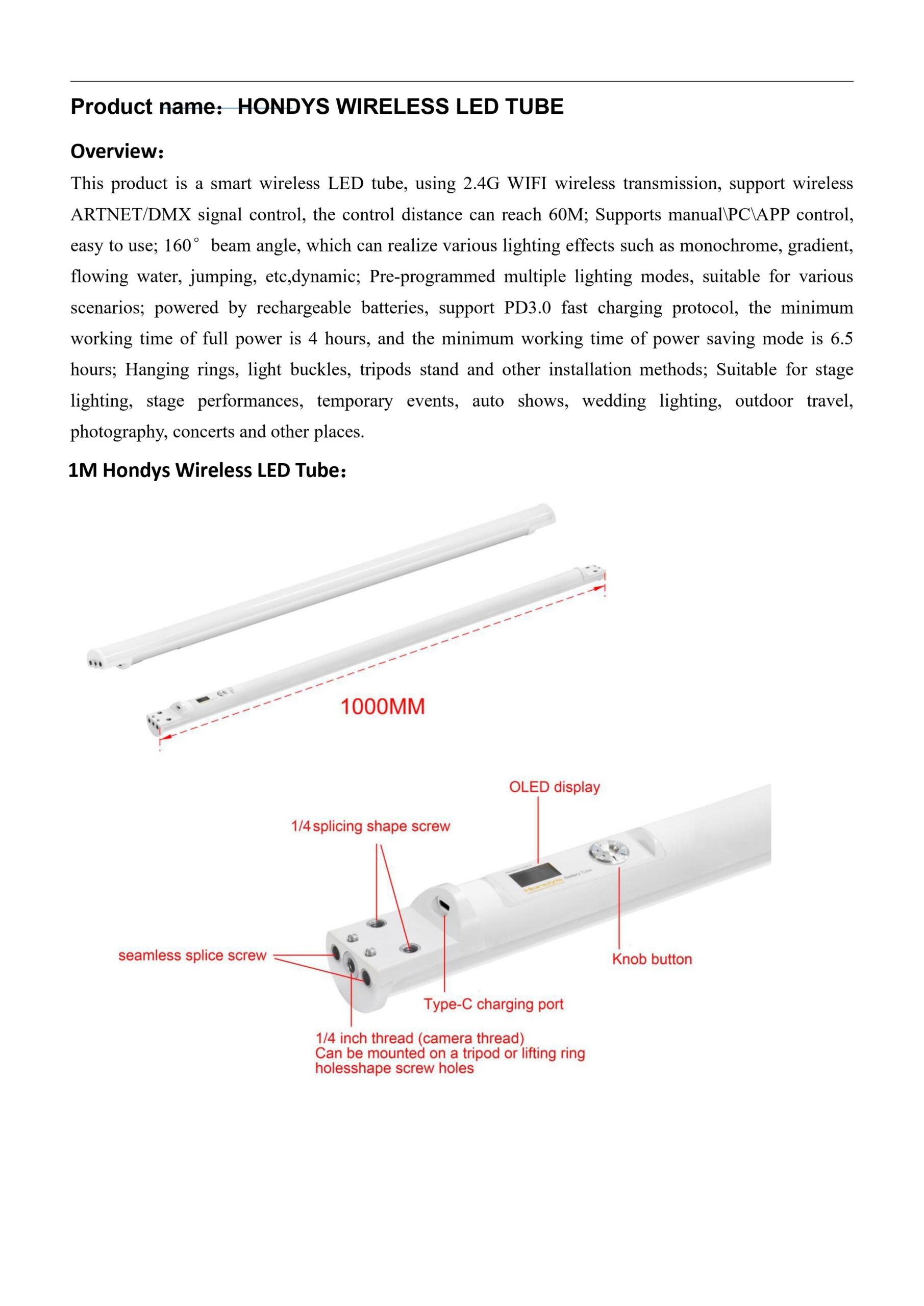

Product name ：HONDYS WIRELESS LED TUBE
Overview： ：

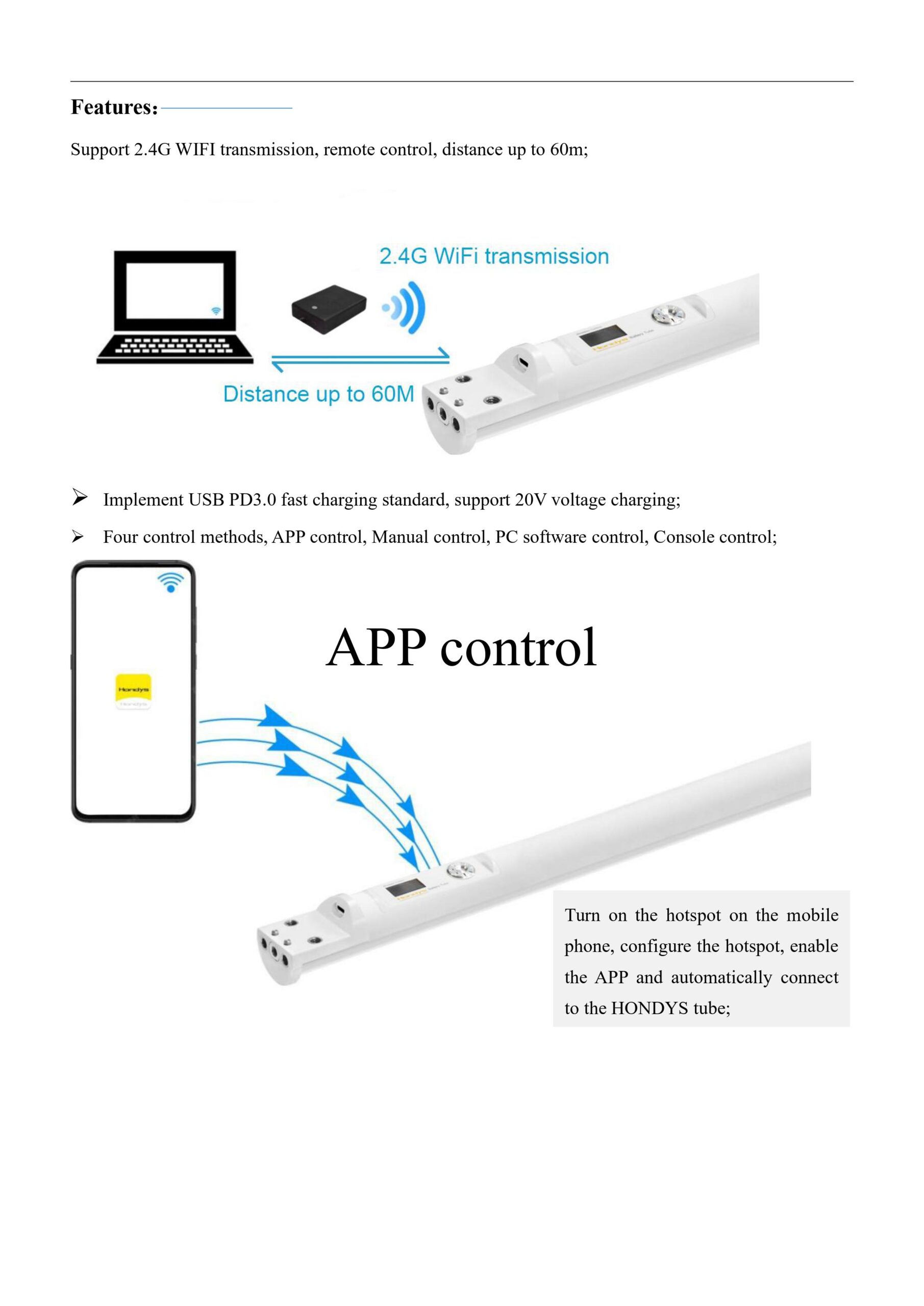

This product is a smart wireless LED tube, using 2.4G WIFI wireless transmission, support wireless
ARTNET/DMX signal control, the control distance can reach 60M; Supports manual\PC\APP control,
easy to use; 160°beam angle, which can realize various lighting effects such as monochrome, gradient,
flowing water, jumping, etc,dynamic; Pre-programmed multiple lighting modes, suitable for various

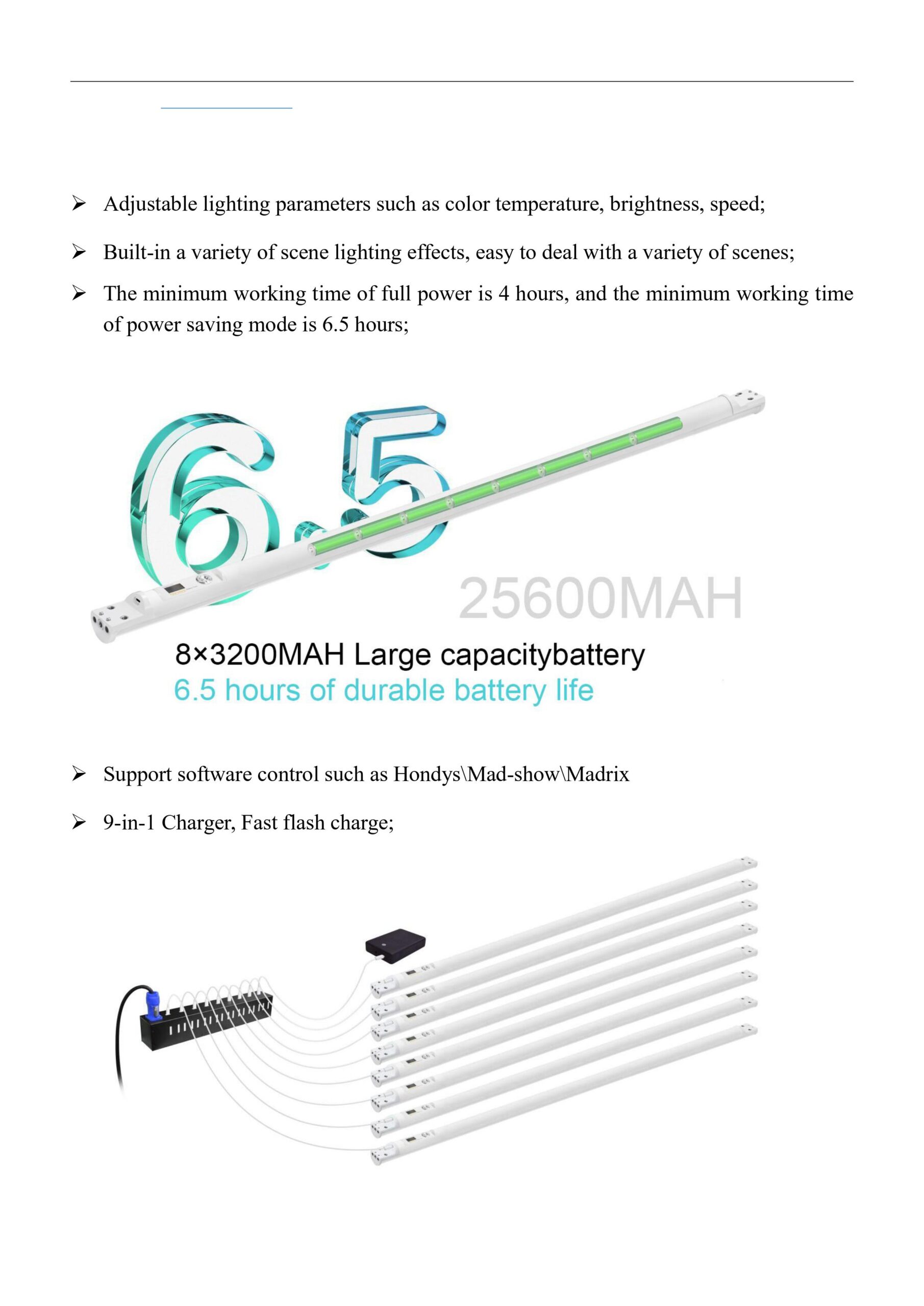

scenarios; powered by rechargeable batteries, support PD3.0 fast charging protocol, the minimum
working time of full power is 4 hours, and the minimum working time of power saving mode is 6.5

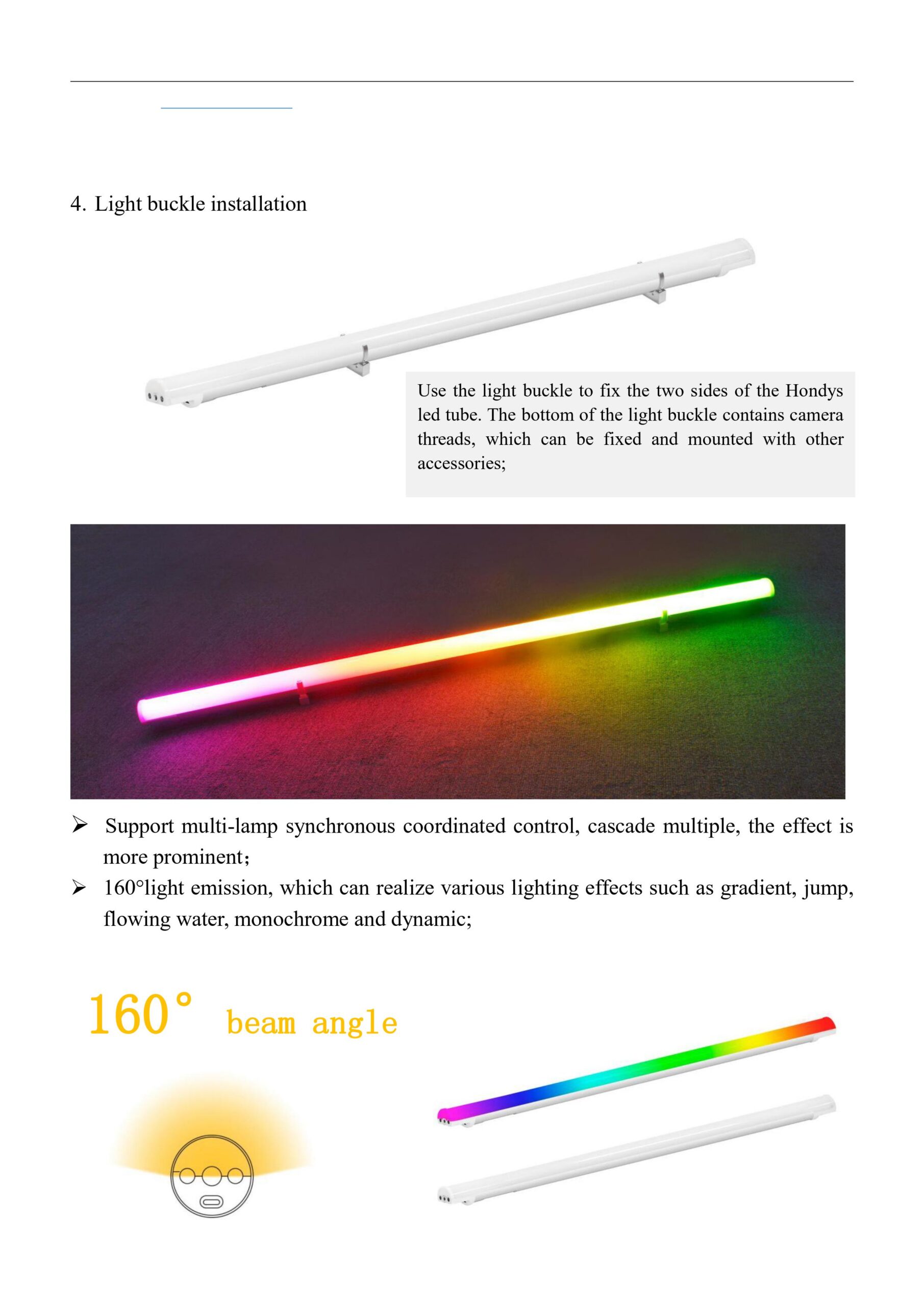

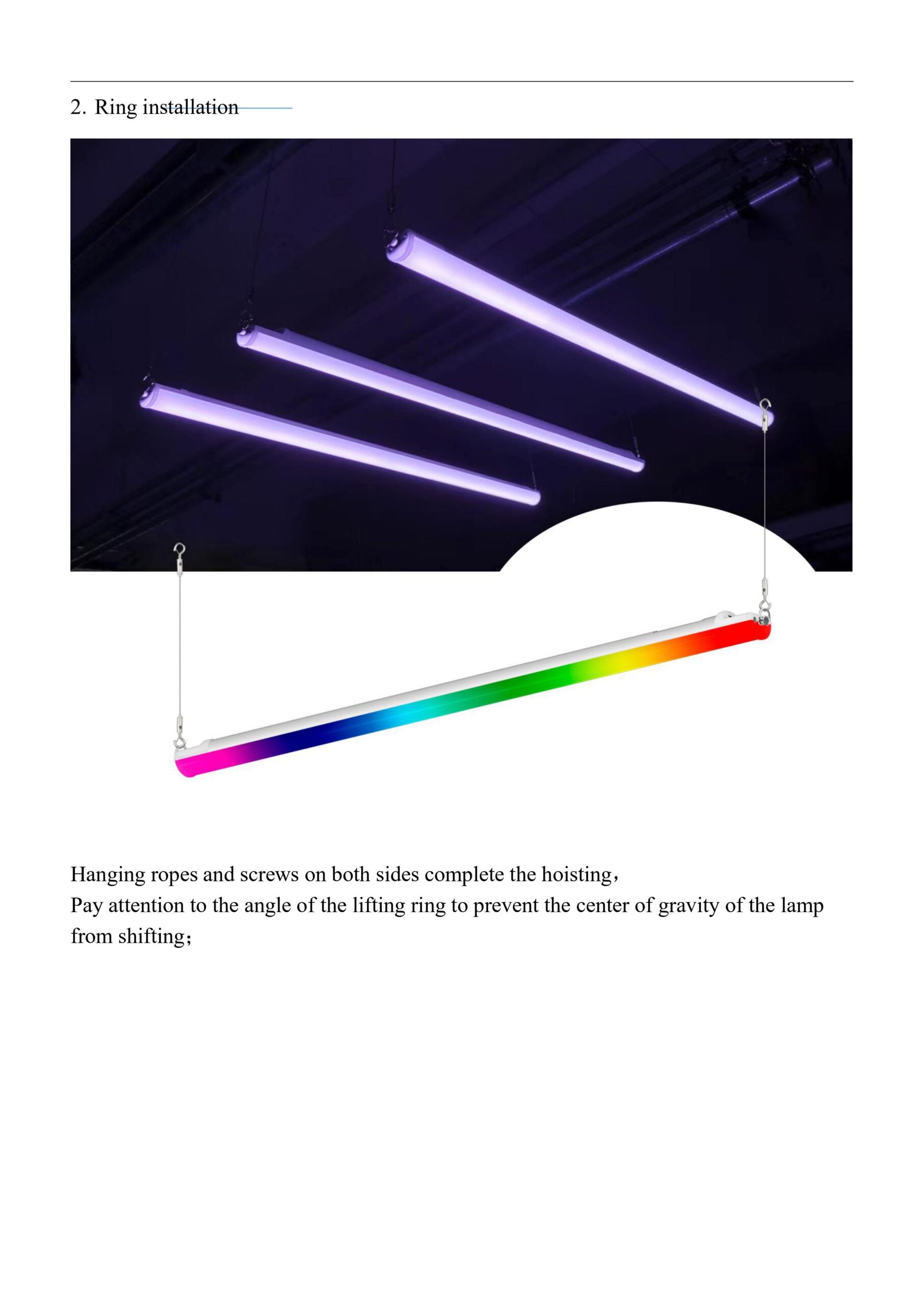

hours; Hanging rings, light buckles, tripods stand and other installation methods; Suitable for stage

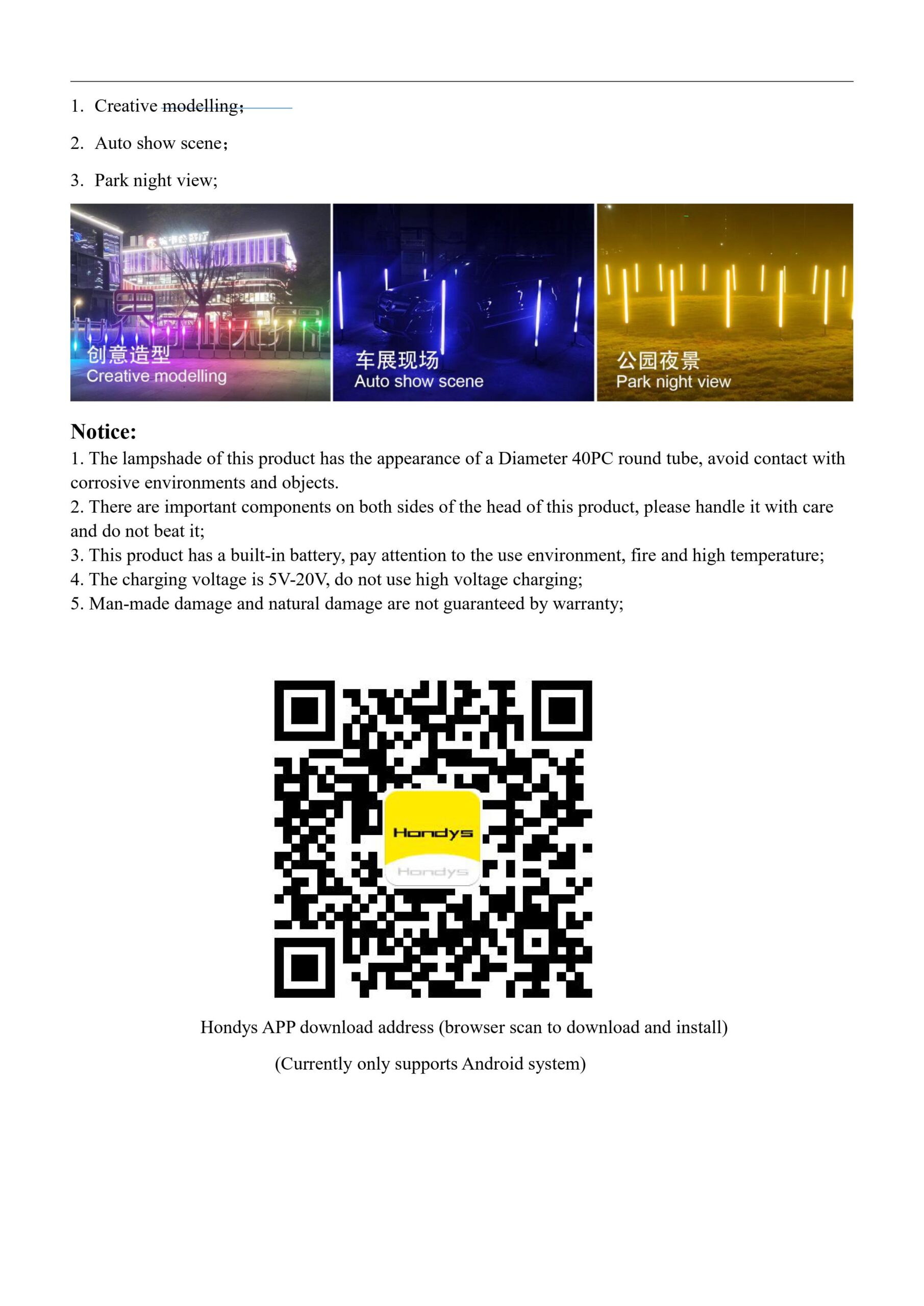

lighting, stage performances, temporary events, auto shows, wedding lighting, outdoor travel,
photography, concerts and other places.

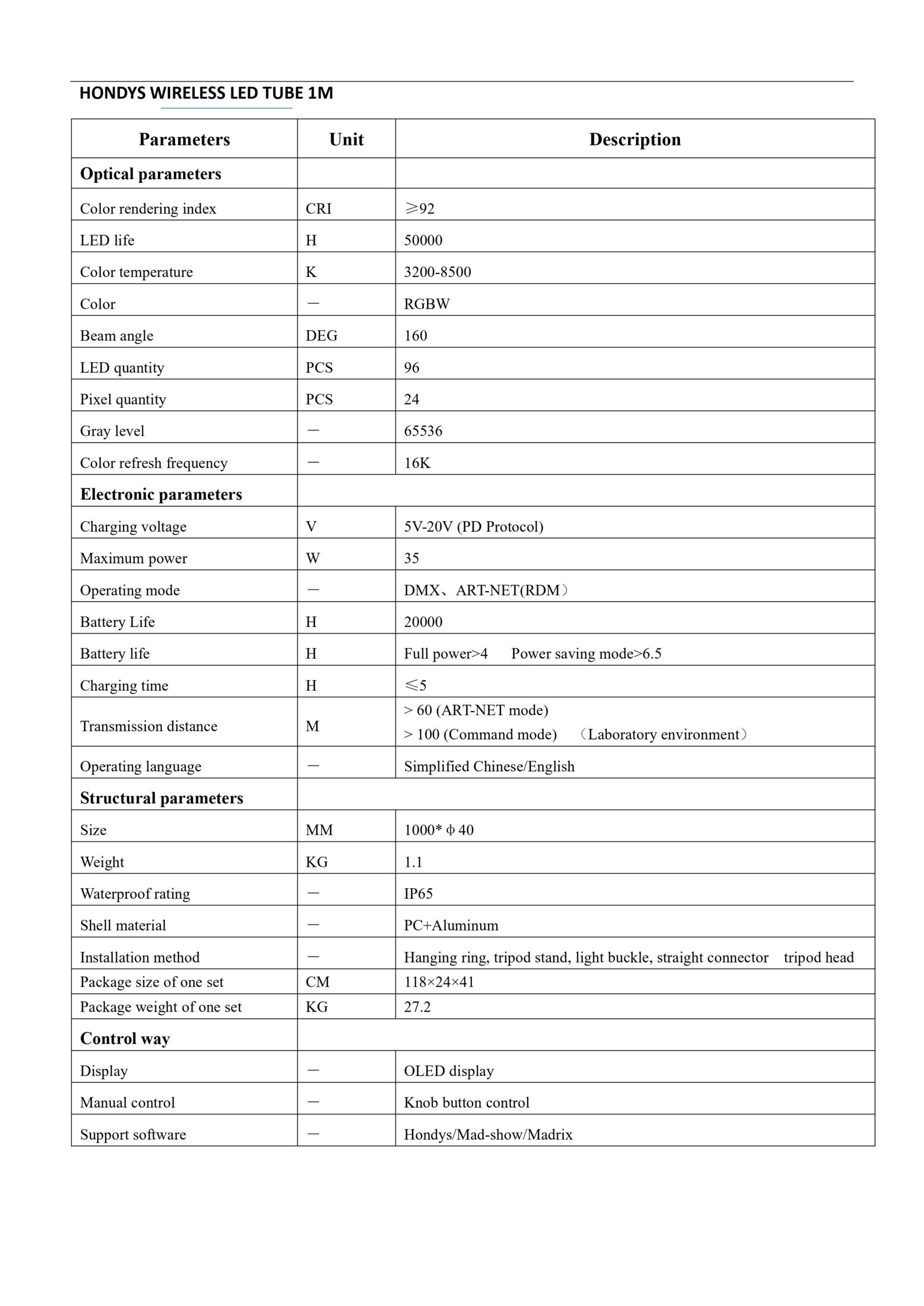

HONDYS WIRELESS LED TUBE 1M
Parameters Unit Description
Optical parameters
Color rendering index CRI ≥92
LED life H 50000
Color temperature K 3200-8500
Color － RGBW
Beam angle DEG 160
LED quantity PCS 96
Pixel quantity PCS 24
Gray level － 65536
Color refresh frequency － 16K
Electronic parameters
Charging voltage V 5V-20V (PD Protocol)
Maximum power W 35
Operating mode － DMX、ART-NET(RDM）
Battery Life H 20000
Battery life H Full power>4 Power saving mode>6.5
Charging time H ≤5
Transmission distance M
> 60 (ART-NET mode)
> 100 (Command mode) （Laboratory environment）
Operating language － Simplified Chinese/English
Structural parameters
Size MM 1000*φ40
Weight KG 1.1
Waterproof rating － IP65
Shell material － PC+Aluminum

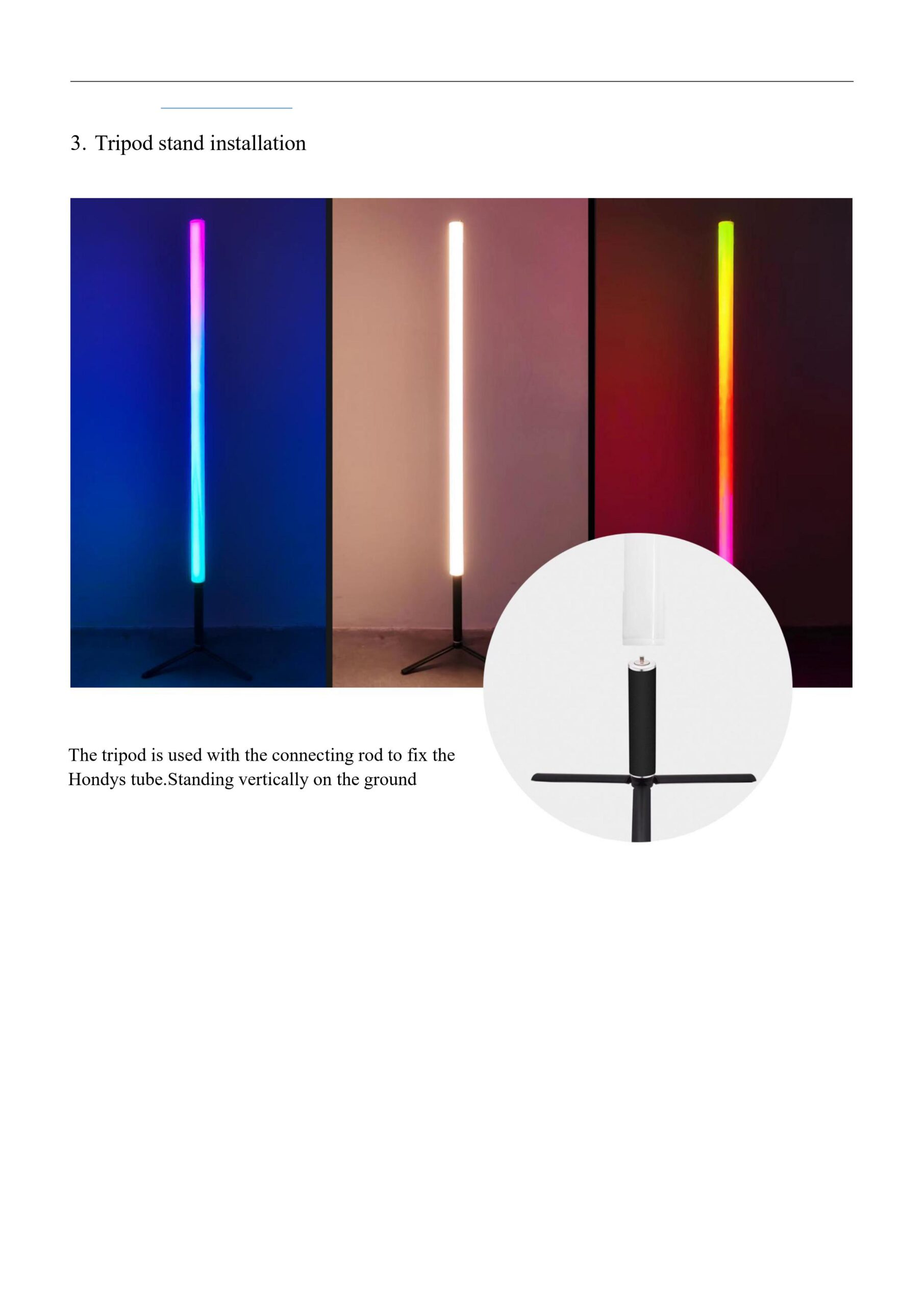

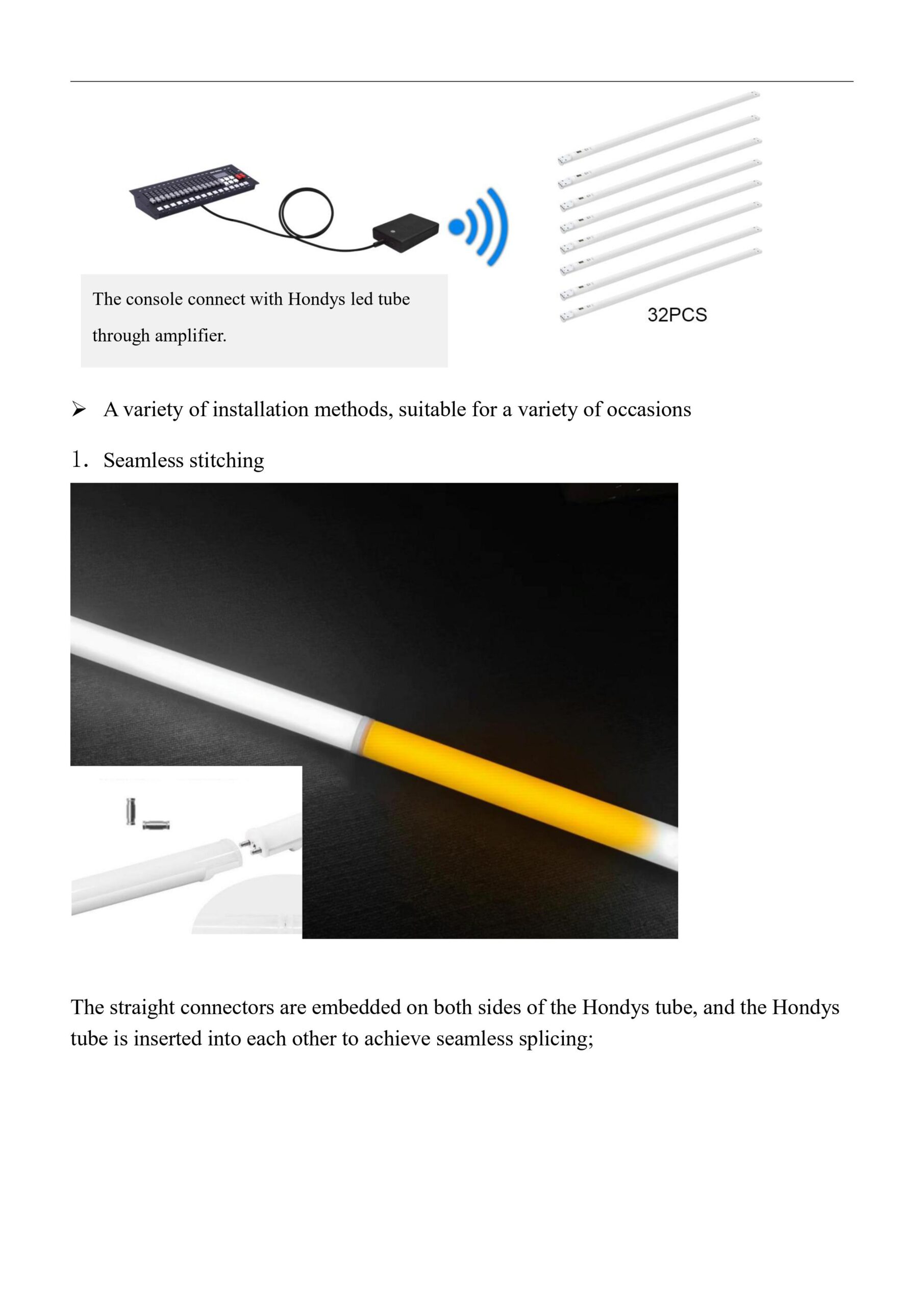

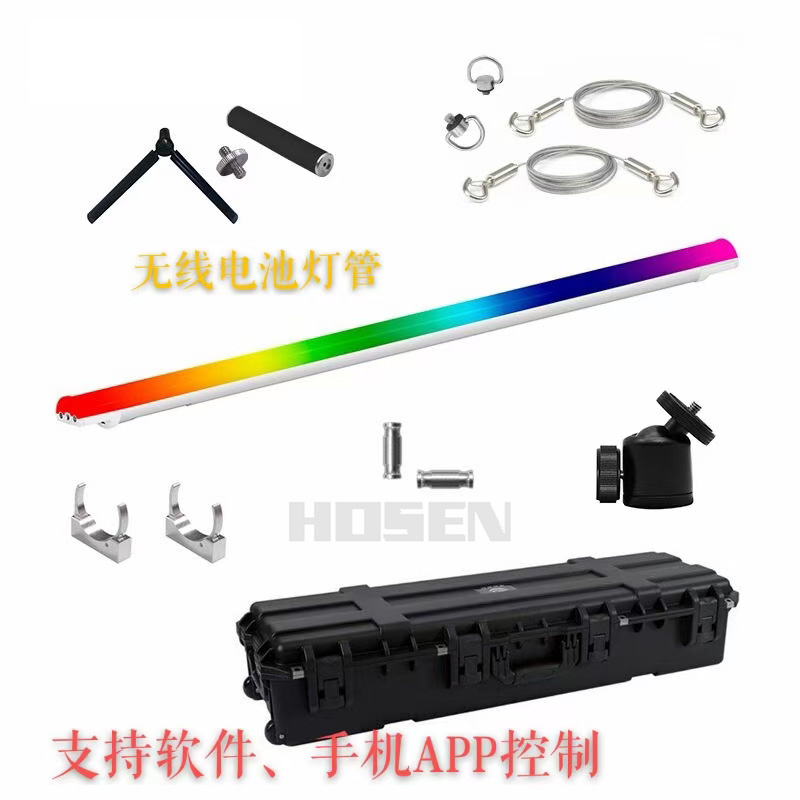

Installation method － Hanging ring, tripod stand, light buckle, straight connector tripod head
Package size of one set CM 118×24×41
Package weight of one set KG 27.2
Control way
Display － OLED display

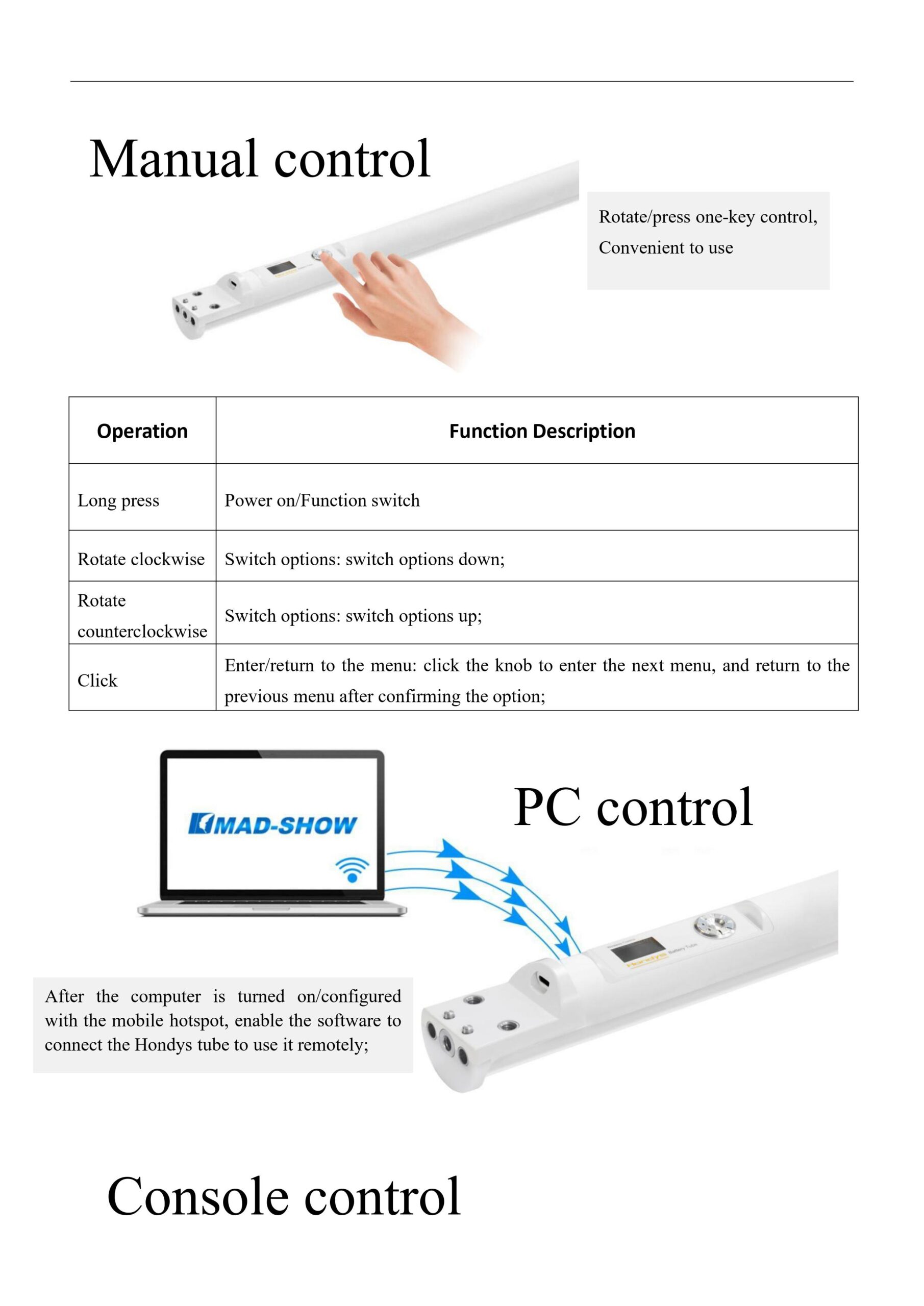

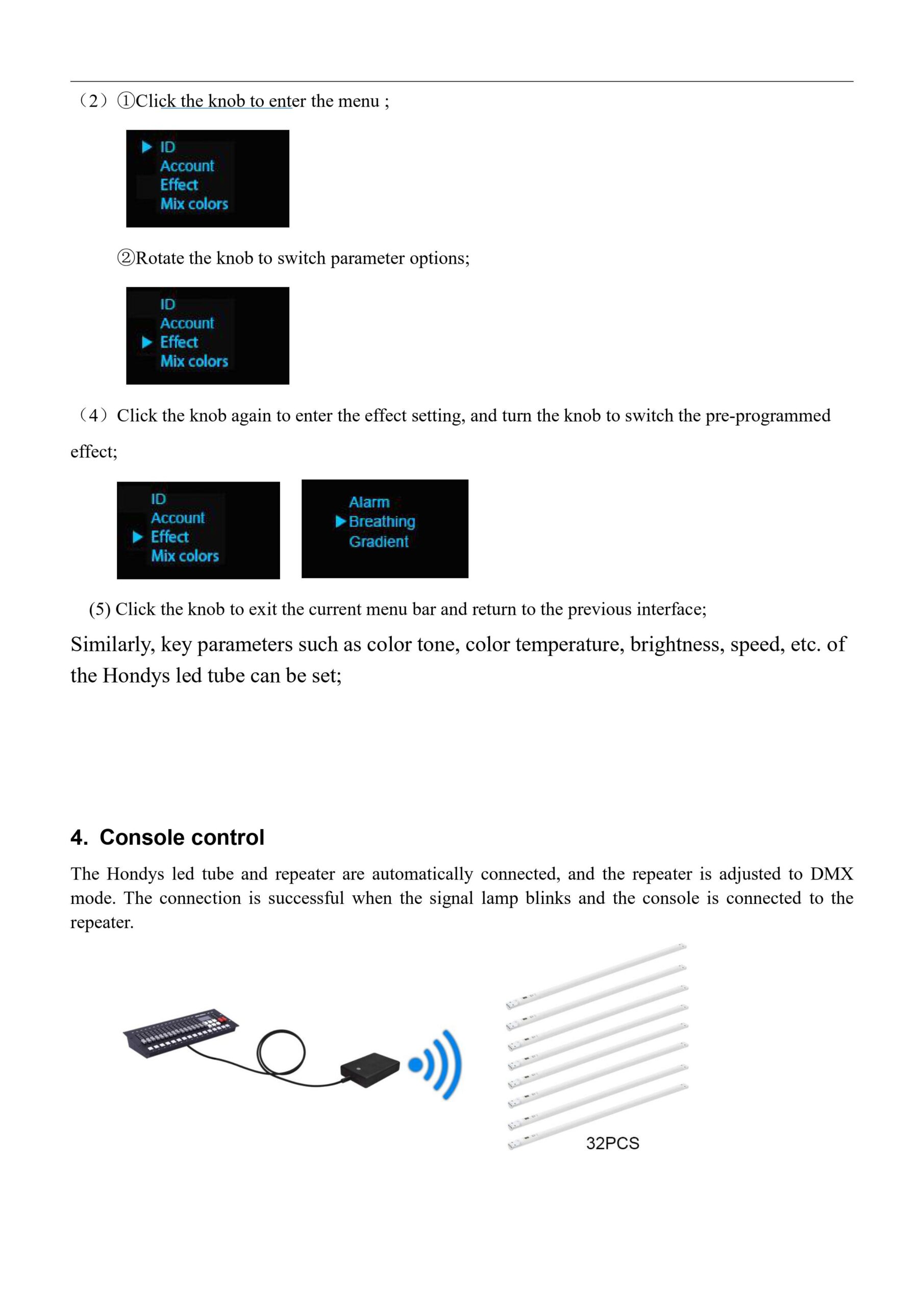

Manual control － Knob button control

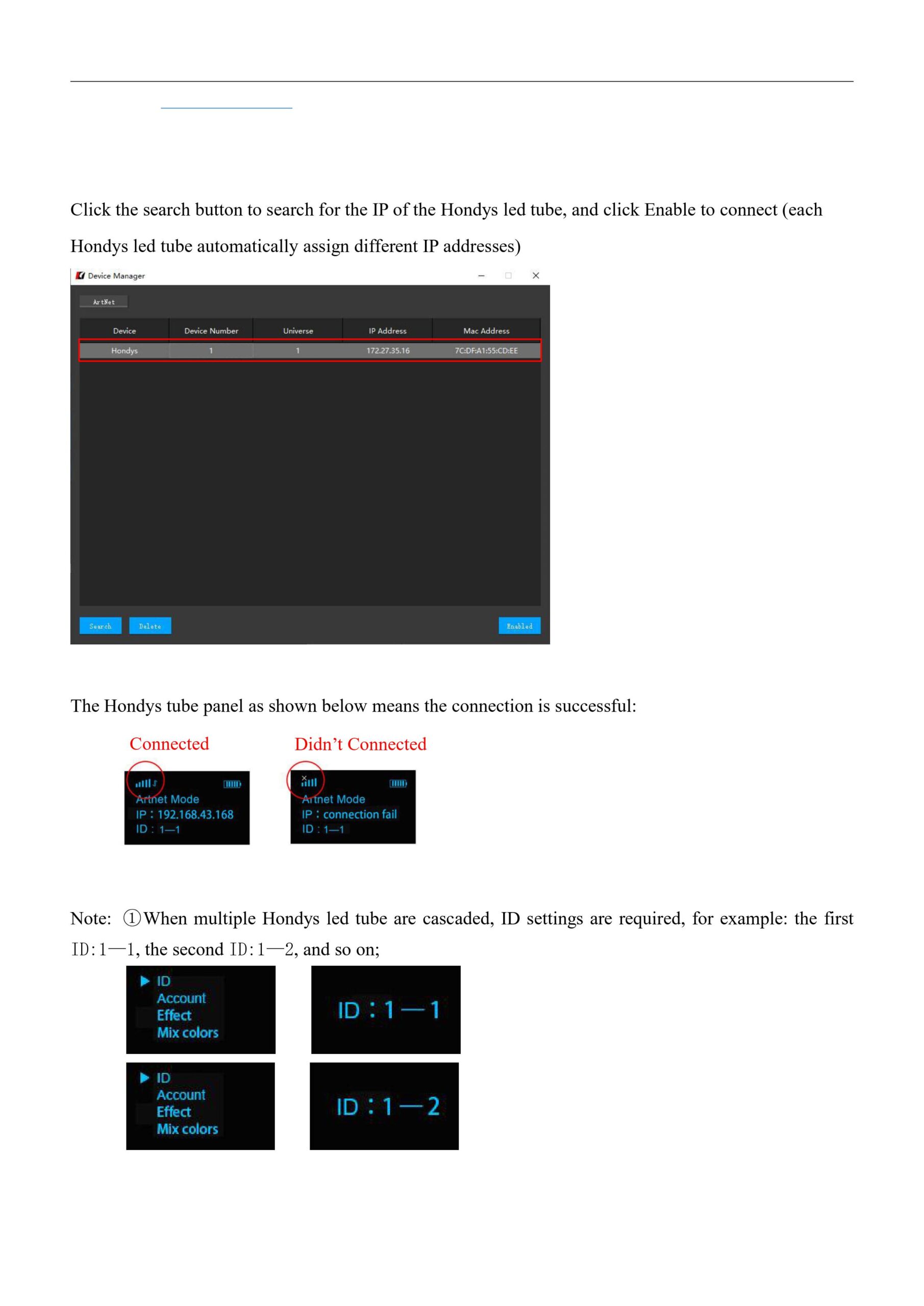

Support software － Hondys/Mad-show/Madrix
