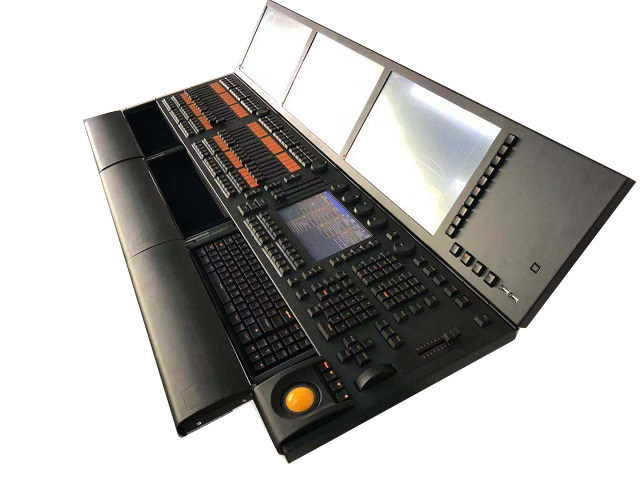

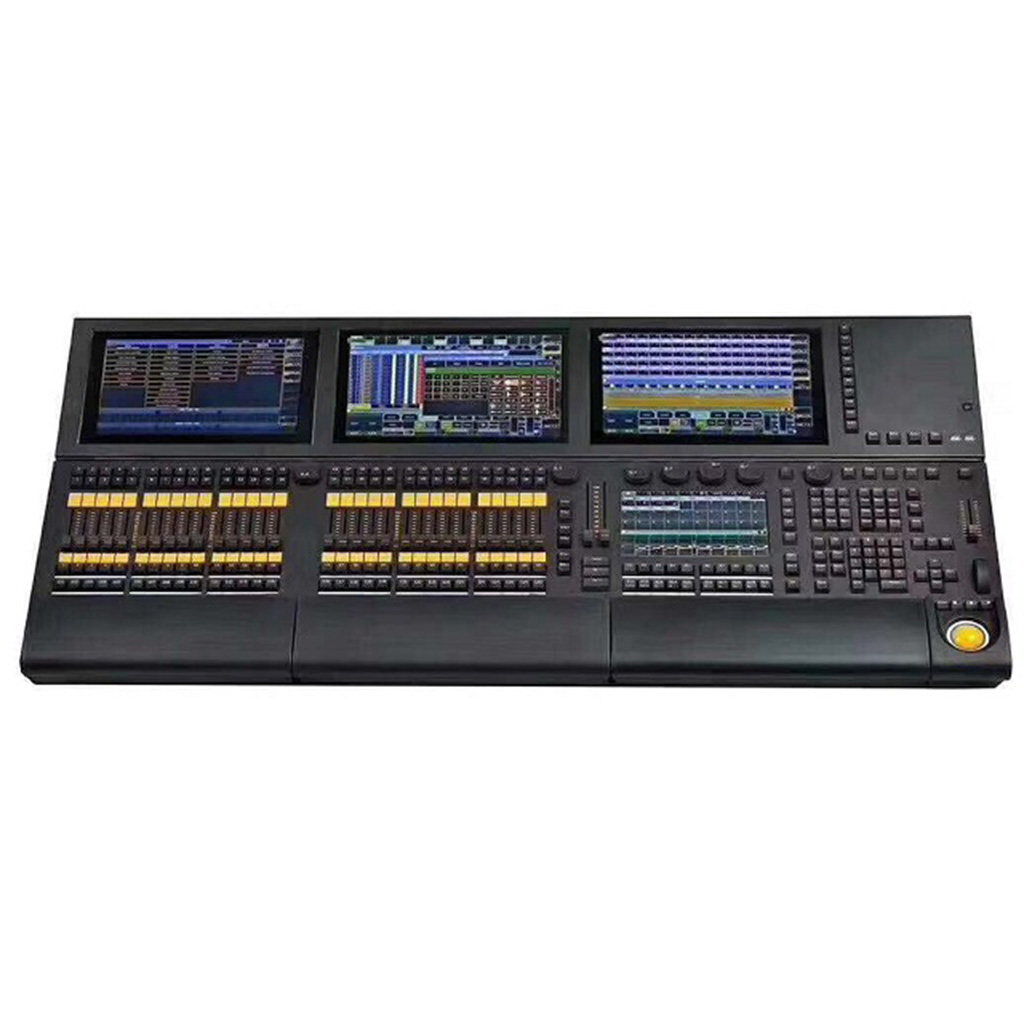

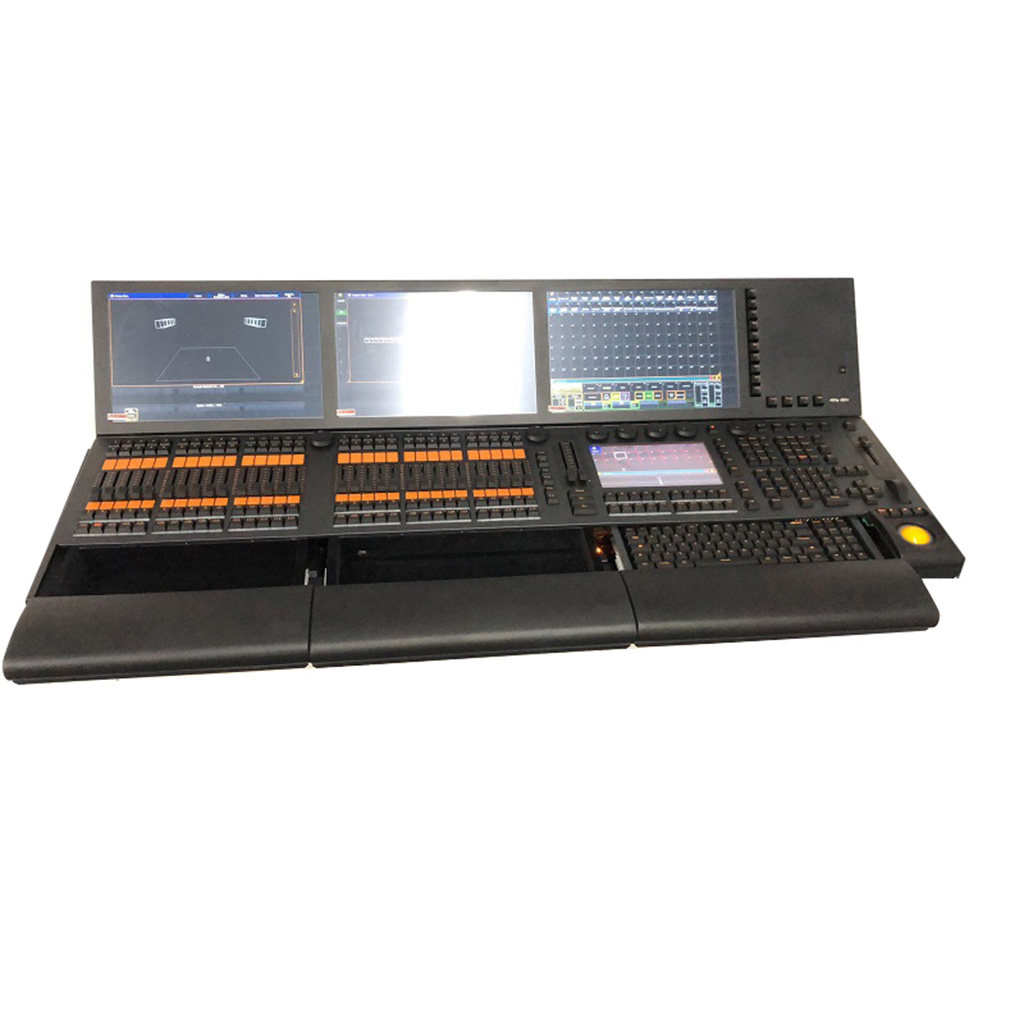

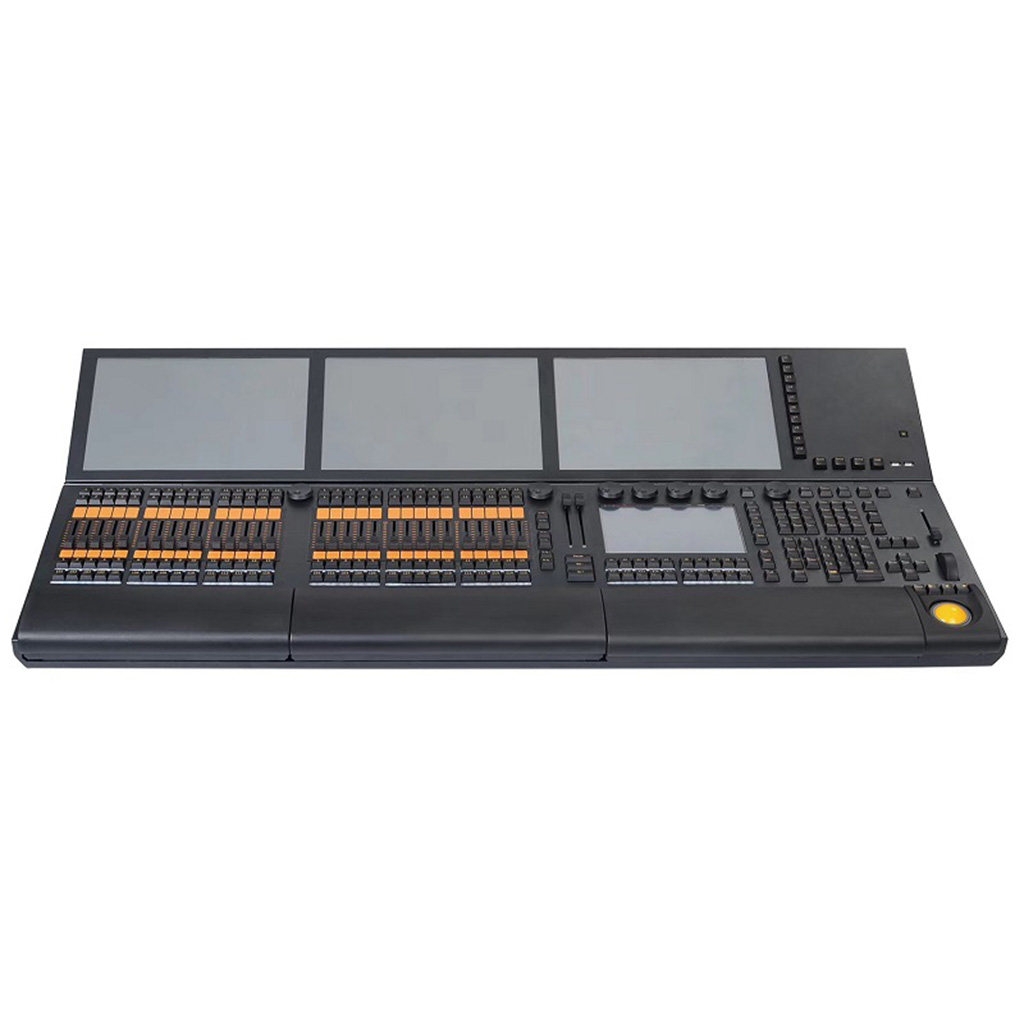

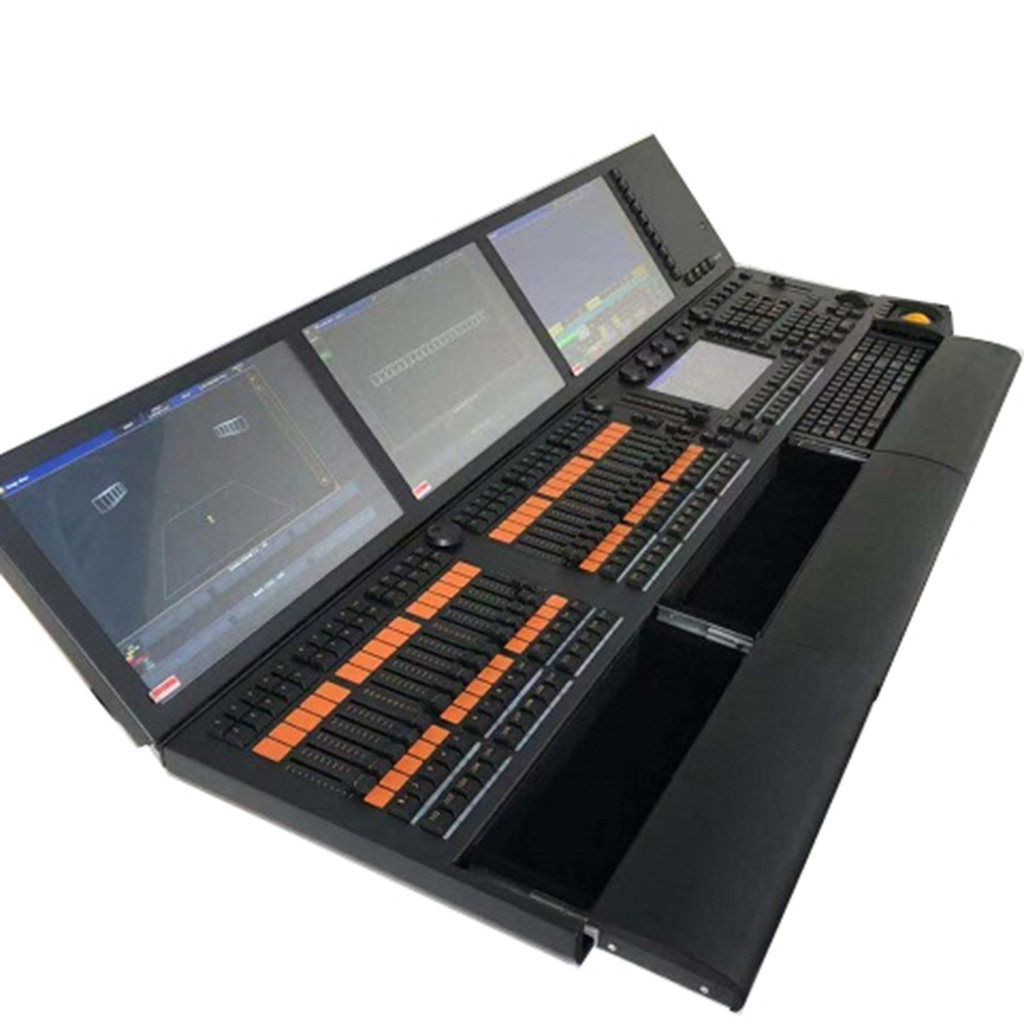

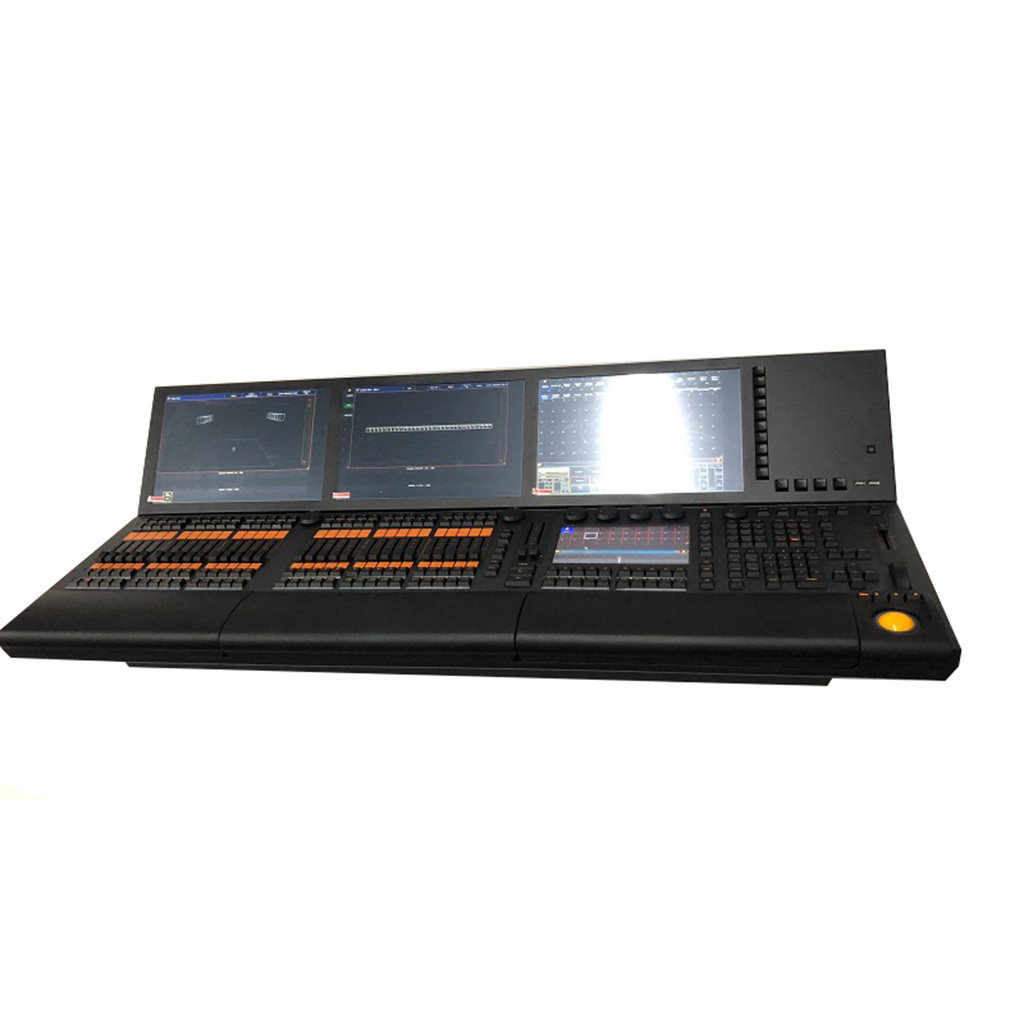

Grand Ma F3 full size DMX console HS-GrandMA F3
Technical parameters:
▶ Three Taiwan industrial 15.4-inch touch screens with higher brightness and wider viewing angle
▶ Full silent backlight professional mechanical key with adjustable backlight brightness
▶ Built in push-pull professional backlight mechanical keyboard with adjustable backlight brightness
▶ 7 industrial PUSH encoders imported from Germany
▶ American NXP industrial multipoint control unit, NXP logic chip
▶ Server level customized motherboard, server level customized memory
▶ The back plate of the electric display screen can be adjusted at any angle of 0-80 degrees
▶ Built in UPS power supply, with undervoltage and overvoltage protection function
▶ SSDs ensure safe data storage faster
▶ 2 work light interfaces, brightness can be adjusted through the console
▶ 1 master dimmer
▶ 1 master control electric push rod
▶ 2 electric A/B cross switching push rods
▶ 30 electric program execution push rods with touch sensing function
▶ One highly sensitive trackball, which can switch the mode to control the XY axis of the lamp
▶ 2 DVI connectors
▶ 50 execution program keys, 20 of which can be switched by user
▶ The X11-X20 button on the console supports the system’s function of starting F1-F10
▶ MIDI input/output interface, LTC time code function
▶ 2 Gigabit network interfaces
▶ 5 USB interfaces
▶ One 9-inch 10 point touch screen
▶ Six DMX outputs
▶ 1 DMX input interface (composite function can be changed to output)
▶ 8192 DMX channel parameters are built in the console
▶ 65536 control parameters can be reached through the network processing unit NPU
▶ Up to 32 session groups, up to 200 sites per session group
▶ Full laser, high-precision CNC machining case and frame
▶ The console can be connected to WYSIWYG 3D lighting design software, MADRIX, pangolin laser software, ARKAOS video server
▶ Support wireless remote control
▶ Synchronous operation can be carried out through the central control system R232 protocol to run the push rod program and time code
▶ Switch on/off of console can be managed through R232 protocol of central control system
▶ The operating system is Linux
▶ Wide voltage: 550W power
