600W IP65防水ビームムービングヘッドライトHS-M600

600W IP65防水ビームムービングヘッドライトHS-M600

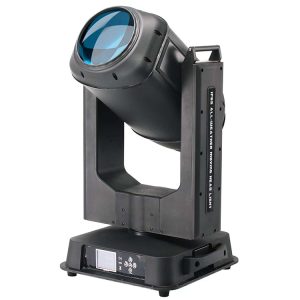

IP65 WATERPROOF BEAM440 MOVING HEAD use a new and reliable 440W Original Customized PHILIPS lamp(7500K~8500K), which ensures the extraordinary performances. . IP65 WATERPROOF BEAM440 MOVING HEAD is a outdoor use beam moving head , which produces an outstanding large light beam with beautiful colors. Light beam is sharp, with beam angle from 0 宛先 1.2 度. Apply to outdoor big event and stage, can also be used for some landmark buildings.

LIGHT SOURCE
● Light Source: Original Customized 440W PHILIPS lamp(7500K~8500K)
● Ballast: Original Customized PHILIPS
● Average Life Span: ≥1500hours

POWER
● Input Voltage: AC90~240V, 50/60ヘルツ
● Power Consumption: 600W
●Power supply: 電子オートレンジ
●Power/DMX input and output

OPTICAL SYSTEM
● Luminous Flux: 660000lumen@10m
● Beam Angle: 0~1.2°
● CRI: 85±5
● PFC: ≥0.95
● Focus: Motorized linear focus
● 1 Prism Wheel: 1pc 8-facet prism, bidirectionally rotating at variable speed (3-facet or 16-facet prism is optional)
● Frost: 1pc frost filter, can achieve soft light effect
● Dimmer: 0~100% mechanical dimming, smooth without flicker
● Shutter/Strobe: Independently strobe with double motors, 0.5~20 F.P.S, 速度調整可能
● Lens: Use imported multilayer coating lens combination, the diameter of beam aperture is up to 200mm
● Projection Distance: Over 3000m in similar parallel light

MOVEMENT
● Pan and Tilt: Use high precision 3-phase motors for pan and tilt, accurate location, smoothly moving, automatic correction location
● Pan: 540°自転, 8/16Bit adjustment
● Tilt: 270°自転, 8/16Bit adjustment

COLOR SYSTEM
● 1 Color Wheel: Use Taiwan high temperature color filters, 11pcs colors+open, half color and rainbow effect
● 1 Rainbow Wheel: Use Taiwan filters, can project 1 or 8 beams of rainbow effect

GOBOS
● 1 Fixed Gobo Wheel: 14pcs fixed metal gobos+open, bidirectionally shaking & flowing at variable speed

CONTROL
● Control Mode: DMX512, RDM function(remotely set the address code via a large DMX512 controller), Auto Run, Sound Control, MasterSlave and Manual
● DMX Channels: 14/18ティッカー
● Lamp Control: Control the lamp on/off via controller

PHYSICAL
● IP Grade: IP65
● DMX Connector: 3-pin waterproof signal in and out XLR
● Display: 2.8 inch colorful LCD screen, 180° inversion
● Power Cable: 防水電源ケーブル

MATERIAL
● Fixture Material: High hardness heat dissipation aluminum profile(die-casting aluminium), flame-retardant anti-aging high temperature engineering PVC, use outdoor imported fine sand spraying technology, anti-uv treatment, anti-aging, high temperature, long service life

COOLING SYSTEM
● Cooling System: Use Japan fans, the chip controls the fan speed, the original heat dissipation structure, cooperate with the radiator shell, guarantee the long time outdoor use

FEATURE
● Feature: It can be programmed independently via LCD display, master and slave lights are running synchronously without controller operation

働く環境
● Ambient temperature: -20°C ~ +45°C (-4華氏 ~ +113 度華氏)
● Protection grade: IP65

承認
● CE & ROHSの
● If any other certificates are required, 確認してください

重量 & DIMENSION
● Fixture N.W.: 32.5キログラム
● Carton G.W.: 35.5キログラム
● Flight Case G.W.: 55キログラム
● Fixture Dimension: L434*W400*H756(ミリメートル)
● Carton Dimension: L565*W490*H910(ミリメートル)
● Flight Case Dimension: L570*W480*H960(ミリメートル)

包装内容明細書
● 440W IP65 Waterproof Beam Moving Head Light
● User manual
● Power cable
● O-mega hook

オプションのアクセサリ
● Flight case: 2の個 1
● Clamp
● Safety rope
● DMX wire
