MSD300 Original Novastar LED-Sendekarte für LED-Videowandpaneele im Freien HS-MSD300
Produktparameter
MSD300 Nova novastar sending card For LED Display Screen
Spezifikation
Full Color Synchronous Novastar MSD300 Sending Card For LED Display Screen

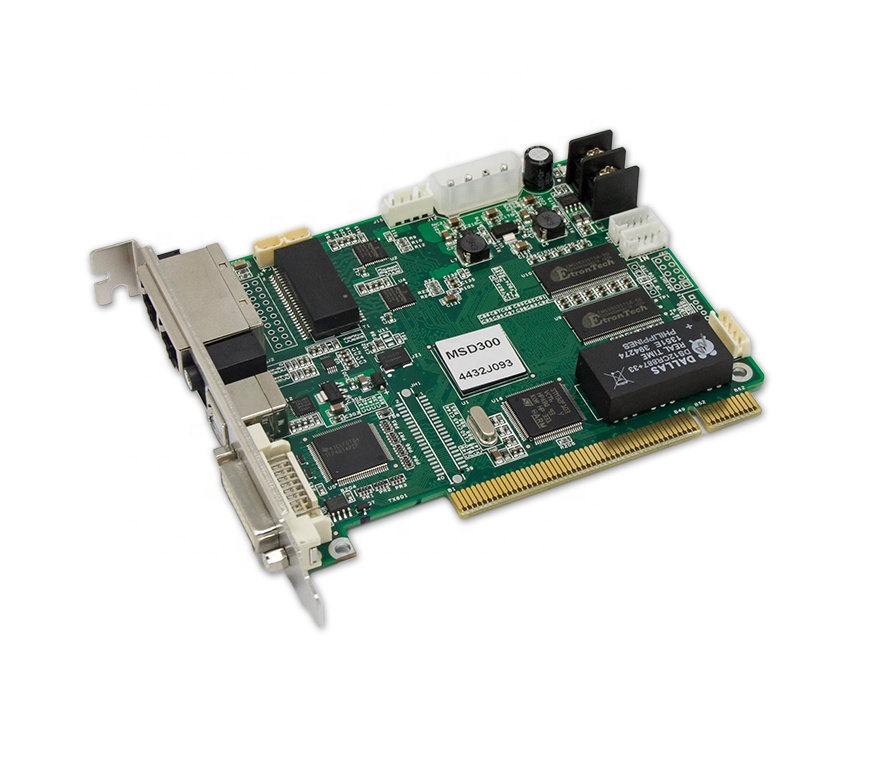

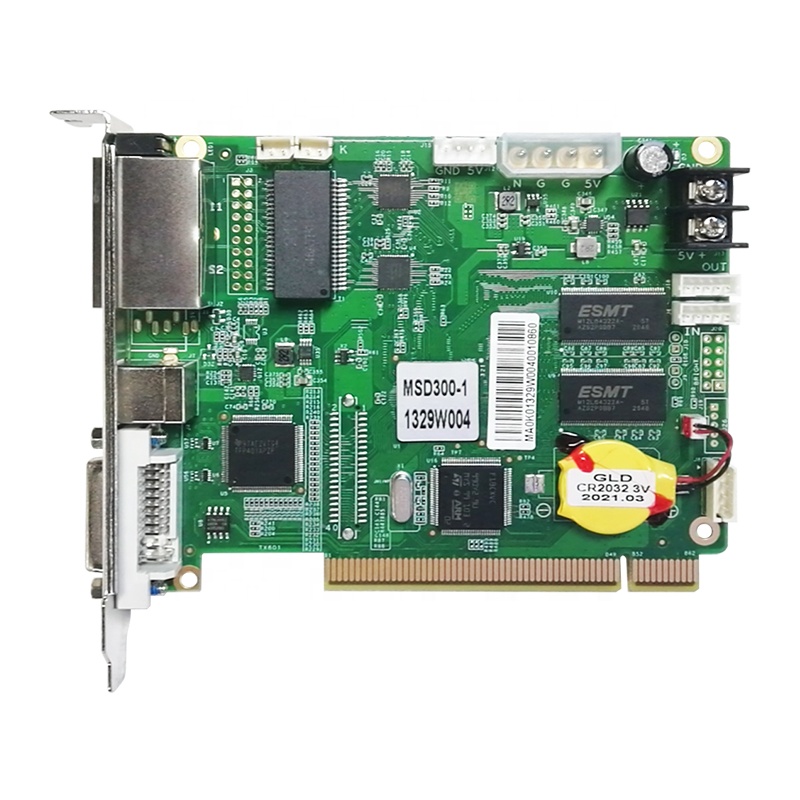

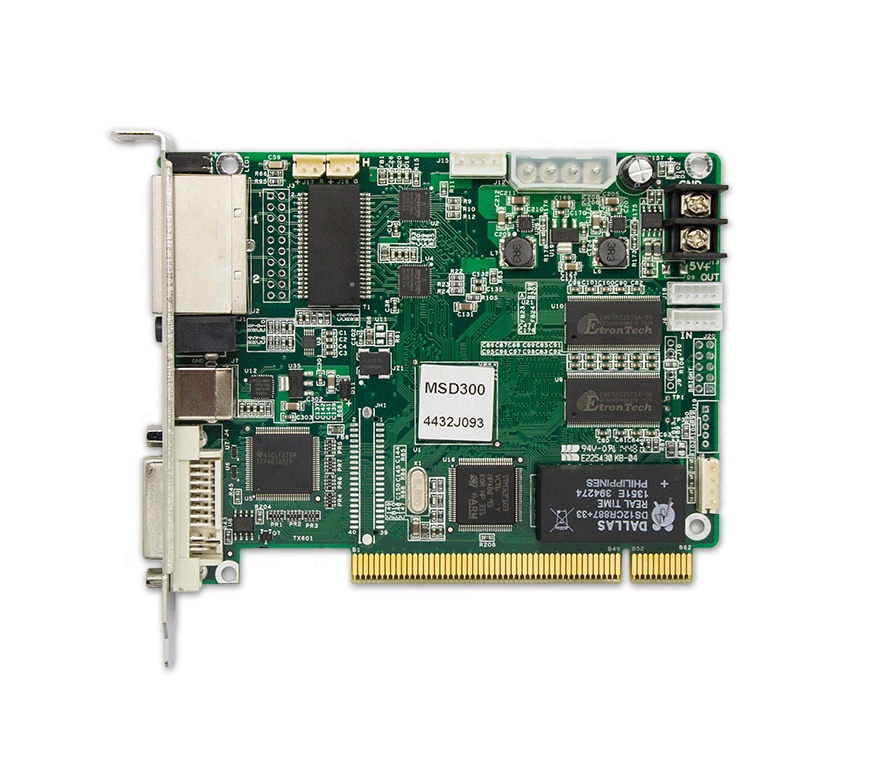

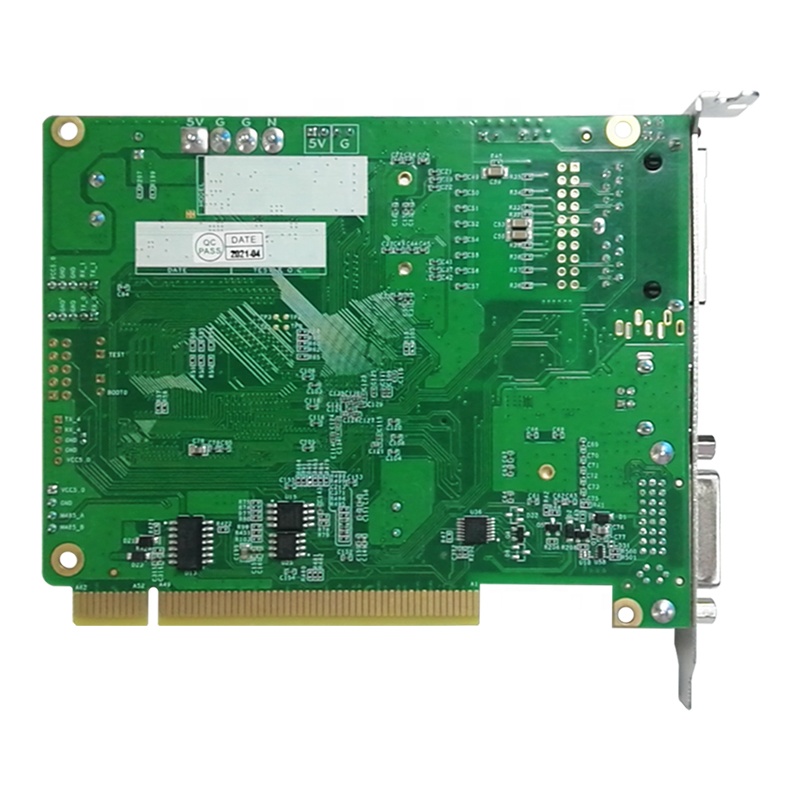

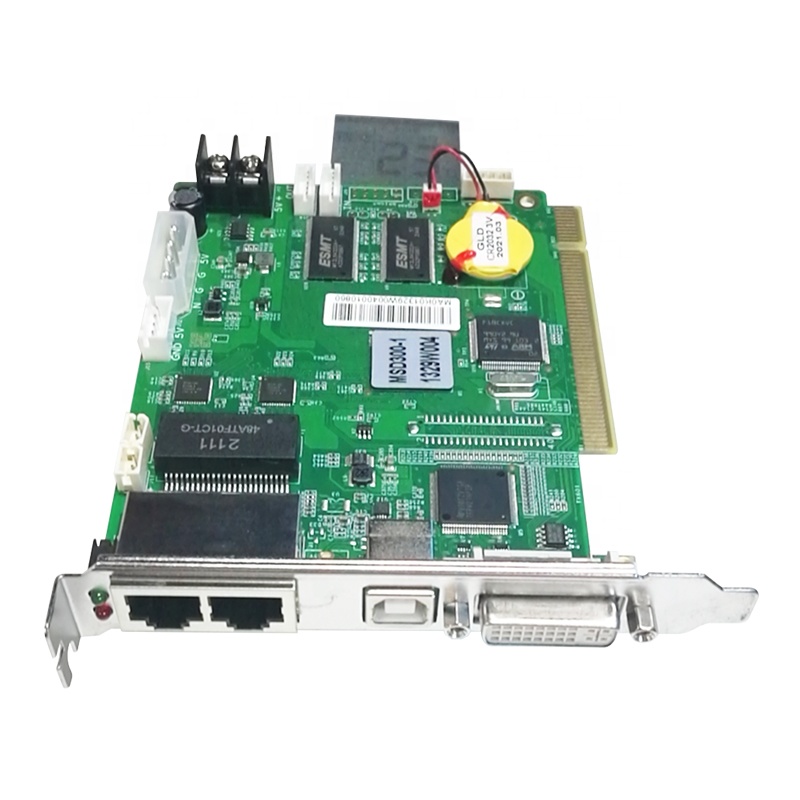

The MSD300 is an M3 series sending card from NovaStar. This sending card supports video
and audio inputs, and can decode and process them before sending them to the LED screen
via Ethernet port. A single MSD300 supports resolutions up to 1920×1200@60Hz.
It communicates with the computer via USB port and is very convenient to use. The MSD300
can be used for rental and fixed applications, such as live events, monitoring centers and
various sports centers. XI’AN NOVASTAR TEC
1 × DVI video input and 1 × audio input
2 × Gigabit Ethernet output 1 × light sensor connector Supports the new generation of pixel
level calibration technology from
NovaStar to provide a fast and efficient calibration process
|

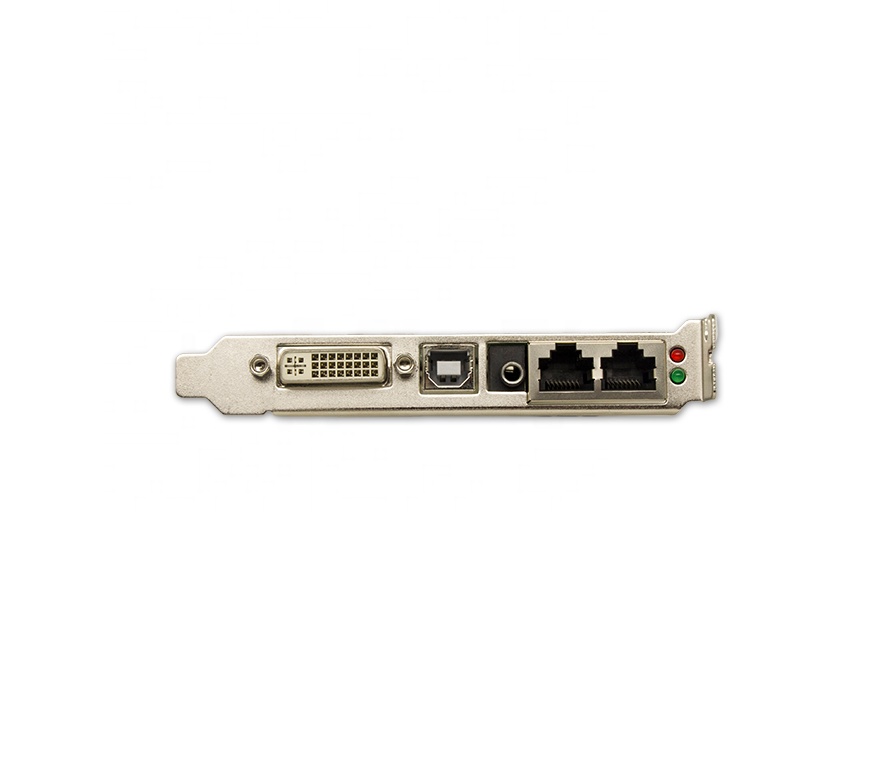

Verbinder
|
Connector Name
|
Description
|
|
input
|
DVI x1
|
Single-link DVI input connector
|
|
Supported maximum resolution: 1920×1200@60Hz, downward
|
||
|
|
Resolution customizable Maximum width: 3840 pixels Maximum height: 1920 bildpunkte
|
|
|
AUDIO
|
Audio input connector
|
|
|
Ausgabe |
RJ45 ×2 |
2 Gigabit Ethernet ports
|
|
Maximum loading capacity of a single port: 650,000 bildpunkte
|
||
|
Supports redundancy between Ethernet
ports. |
||
|
Funktion
|
LIGHT SENSOR
|
Connect to light sensor to monitor ambient brightness to
realize automatic screen brightness adjustment. |
|
Steuerung |
USB
|
USB control port for connecting to PC
|
|
UART IN
|
Eingabe / Outdoor Connector for cascading devices
|
|
|
UART OUT
|
Output port for cascading devices.
|
|
|
Macht
|
DC3.3-5.5V
|
|
|
Packing Information |
Each controller is provided with a carrying case, accessory box and
packing box. The controller and accessory box (containing controller related wires and accessories) is packed in the carrying case and the carrying case is packed in the packing box. |
|
|
Carrying case
|
335 mm × 190 mm × 62 Mm, craft paper box
printed with NOVASTAR |
|
|
Accessory box
|
402 mm× 347 mm × 65 Mm, craft paper box
1 × power cord1 × USB cable 1 × DVI cable |
|
|
Packing box
|
400 mm × 365 mm × 355 Mm, craft paper box
printed with NOVASTAR |
|
Superleicht, Außergewöhnlich raffiniert
Superleichtes Gehäuse, nur 6.5kg, Dicke: 62.5Mm
Komfortable Griffe, Leicht zu nehmen und zu transportieren
Super-Schutz, Wasserdicht und stoßfest
Winkelschutz reduziert effektiv das Risiko, während des Transports gegen die Lampe zu stoßenAnti-Kratz-Lampenoberfläche, Das konvexe Design der Maske verbessert die Oberfläche des Moduls gegen Kollisionen und stellt sicher, dass das Produkt langlebiger ist，Super wasserdicht, Schutzart bis IP65, keine Angst vor Regenschauer
Hervorragendes Display, Vollständige High-Definition-Bildqualität
Hervorragende Grafikdarstellung, Das Bild ist exquisit und lebensecht, Augenöffnen160° ultraweiter Betrachtungswinkel, Komplett ohne Farbverzerrung, verschiedene Blickwinkel, um die gleiche wunderbare Szene zu genießen
